General Information
Intelligent Loitering Munition

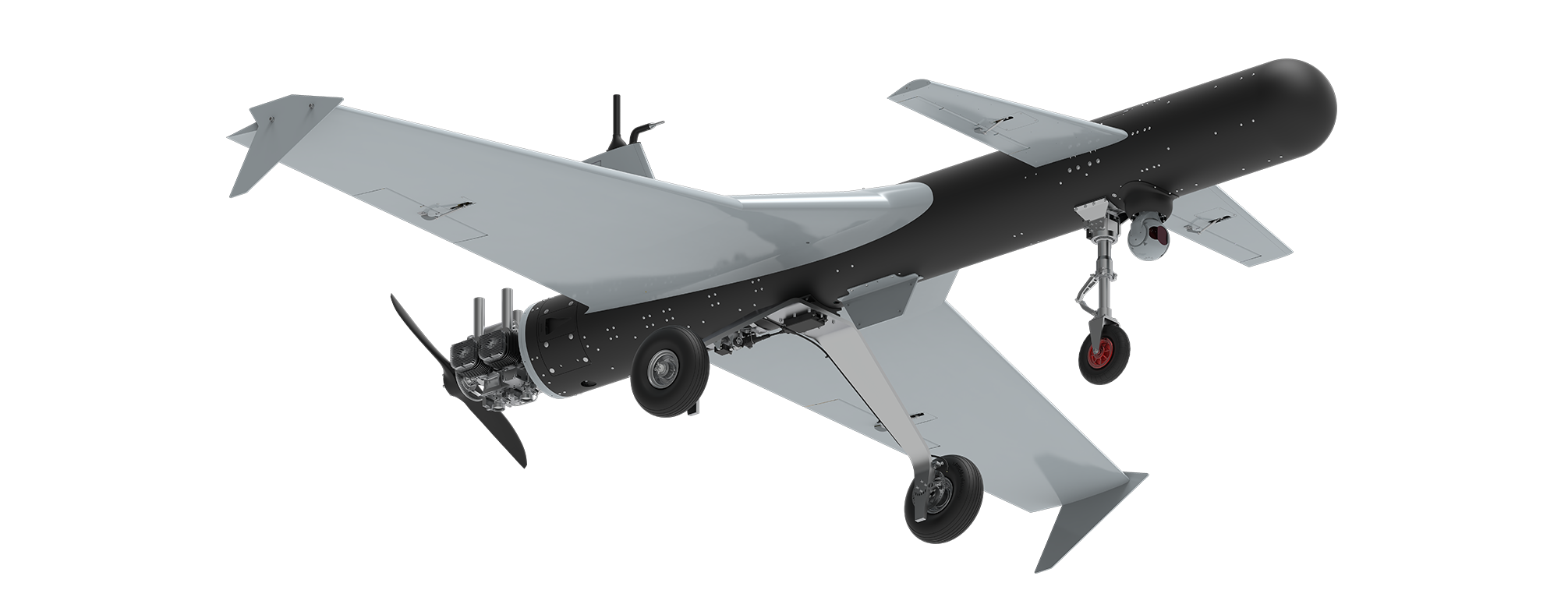

The Mızrak Intelligent Loitering Munition is a next-generation loitering munition developed by Baykar to deliver high impact at medium altitude, standing out with its customizable structure, high strike capacity, and extended range. Offered in two main configurations, the system's dual-warhead variant carries a total of 40 kg of explosives, while the single-warhead variant carries 20 kg of explosives in addition to an RF seeker head for precise target detection. This configuration enables effective and flexible solutions tailored to different mission profiles.
In addition to conventional takeoff with landing gear, Mızrak also features a rocket-assisted takeoff (RATO) option, allowing it to operate not only from fully equipped runways but also from challenging and unprepared areas. Capable of establishing digital data and video links with the Bayraktar TB2, TB3, and AKINCI platforms, the system stands out with its anti-jamming protection, visual positioning capability, onboard autopilot, and AI-supported fully autonomous flight capabilities. With these integrated capabilities, Mızrak is a versatile and high-impact solution for active conflict zones and remote operational areas.
- AI-Assisted Optical Guidance Set
- AI-Assisted Autopilot System
Technical Specifications
- Service Ceiling 10.000 ft
- Operational Altitude 4,000 ft
- Communication LOS, BLOS (Optional)
- Communication Range 80+ km
- Operational Range 1.000+ km
- Endurance 7+ hours
- Cruise Speed 80 KIAS
- Max. Speed 100 KIAS
- MTOW 200 kg
- Payload Capacity 40 kg
- Takeoff/Landing/Cruise/Taxi Runway/RATO
- Power Plant Internal Combustion Engine
- Payload Weapons 40 kg Warhead RF Seeker Configuration has 20 kg Warhead
- Payload AI Assisted Interchangeable EO or IR Camera, RF Seeker or Second Warhead
- Versions Mızrak-C
- Terminal Guidance EO or GNSS
- Wingspan 4 m
- Length 3.6 m
- Height 1,2 m
MIZRAK
You can view 360°
